YAG Laser Crystal
YAG Laser Crystal, Un-doped YAG Crystal (pure YAG)
Nd:YAG (Neodymium-doped yttrium aluminium garnet;
Nd:Y3Al5O12)
●Product Origin:China
●Shipping Port:Fuzhou China
●Payment:T/T Payment, Western Union
+86-0591-83275656
Product description

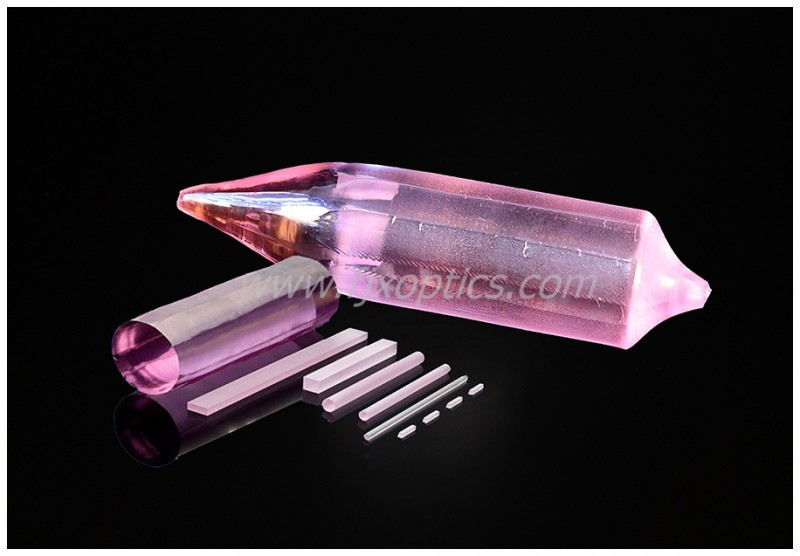

YAG Laser Crystal
Nd:YAG (neodymium-doped yttrium aluminium garnet; Nd:Y3Al5O12) is a crystal that is used as a lasing medium for
solid-state lasers. The dopant, triply ionized neodymium, typically replaces yttrium in the crystal structure of the yttrium
aluminium garnet (YAG), since they are of similar size. Generally the crystalline host is doped with around 1% neodymium
by atomic percent.
YAG Laser Crystal Applications
Nd:YAG absorbs mostly in the bands between 730–760 nm and 790–820 nm.At low current densities krypton flashlamps
have higher output in those bands than do the more common xenon lamps, which produce more light at around 900 nm.
The former are therefore more efficient for pumping Nd:YAG lasers.
Specifications
Nd Dopant Concentration: | 0.5-1.2 atm%tolerance within 10% of concentration |
Diameter: | 3 ~ 14mm |
Length(L): | 0.5~160mm |
Orientation: | <111> crystalline direction (+/-0.5℃) |
Flatness: | <λ/8 @ 633nm |
Smooth Finish: | 20/10 |
Parallelism: | ＜30" |
Perpendicularity: | ＜10' |
Wavefront Distortion: | < λ/8 @ 633nm |
Clear Aperture: | > 90% |
Coating: | According to customer request |
JX-Optics make customized YAG Laser Crystal products according to different application.
Welcome to contact our sales for more information.
