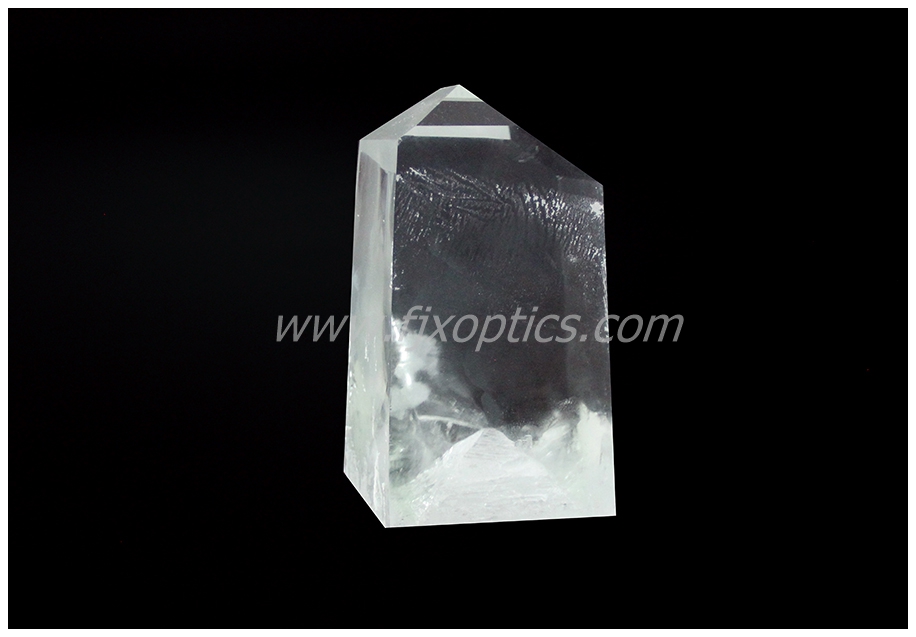

KDP Crystal
KDP Crystal are commonly used for doubling, tripling and
quadrupling of Nd:YAG laser at the room temperature.
●Product Origin:China
●Shipping Port:Fuzhou China
●Payment:T/T Payment, Western Union
+86-0591-83275656
Product description
KDP Crystal
Potassium Dihydrogen Phosphate (KDP) (KH2PO4), Potassium Dideuterium Phosphate (DKDP ) (KD2PO4) are
among the most widely-used commercial NLO materials, characterized by good UV transmission, high damage
threshold, and high birefringence, though their NLO coefficients are relatively low. They are usually used for
doubling, tripling and quadrupling of a Nd:YAG laser at the room temperature. In addition, they are also excellent
electro-optic crystals with high electro-optic coefficients, widely used as electro-optical modulators, such as
Q-switches, Pockels Cells, etc.
KDP Crystal Advantages
1.Good UV transmission
2. High optical damage threshold
3. High birefringence High nonlinear coefficients
Specification
Size（W*H）mm | 1x1~ customization |
Length(L)mm | 0.05~ customization |
Phase Matching Angle(θ,φ) | Angel or according to customer request |
Match Type: | Type I or Type II |
Angle tolerance: | Δθ<±0.2°; Δφ<±0.2° |
Size tolerance: | (W ±0.1mm) x (H ±0.1mm) x (L +0.2mm/-0.1mm) |
Flatness: | L/10 |
Surface quality: | 10-5 |
Parallelism: | 10 arc secs |
Perpendicularity: | 10 arc min |
Wavefront Distortion: | L/10 |
Clear Aperture: | >90% |
Coating: | Broad Band AR-coatings |
Note:
KDP surface easier moistens, the user is advised to provide a dry condition (<50%) and the sealed housing for preservation.
