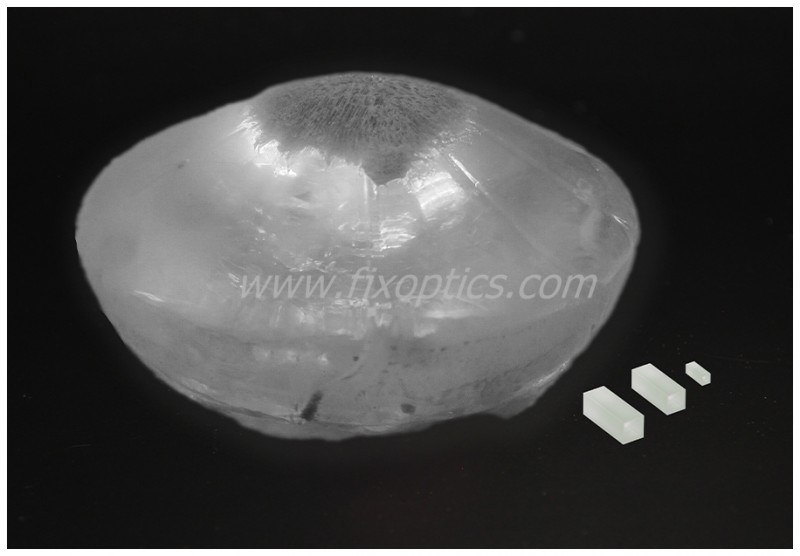

BBO Crystal
BBO Crystal is an efficient NLO crystal for the second, third
and fourth harmonic generation of Nd:YAG lasers, and the
best NLO crystal for the fifth harmonic generation at 213 nm.
●Product Origin:China
●Shipping Port:Fuzhou China
●Payment:T/T Payment, Western Union
+86-0591-83275656
Product description
BBO Crystal
BBO Beta-Barium Borate (β-BaB2O4)is a nonlinear optical crystal with combination of number of unique
features. It with charactors Wide transparency and phase matching ranges,large nonlinear coefficient, high damage
threshold and excellent optical homogeneity provide attractive possibilities for various nonlinear optical applications.
BBO Crystal optical properties
Transparence range: 189-3500nm
Second harmonic generation (SHG) range: 410-2400nm
Type I phase matching plane: X-Z plane, φ=0°
Type I phase matching plane: X-Z plane, φ=30°
Specification
Size（W*H）mm | 1x1~15x15 |
Length(L)mm | 0.05~20 |
Phase Matching Angle(θ,φ) | Angel or according to customer request |
Match Type: | Type I or Type II |
Angle tolerance: | Δθ<±0.2°; Δφ<±0.2° |
Size tolerance: | (W ±0.1mm) x (H ±0.1mm) x (L +0.2mm/-0.1mm) |
Flatness: | L/10 |
Surface quality: | 10-5 |
Parallelism: | 10 arc secs |
Perpendicularity: | 10 arc min |
Wavefront Distortion: | L/10 |
Clear Aperture: | >90% |
Coating: | P-coating or AR coating according to customer request |
Note:
When you receive BBO crystals, please make sure that only qualified personnel are able to open inner plastic boxes at clean environment. When the plastic box of a NLO crystal is opened, please prevent finger print, oil and other substances from adhering to the polished or coated surfaces.
