Glued Prisms, Special Prisms

Glued prisms are glued by different shape prisms.
JX-optics offer Special Prisms like Half Penta Prisms,
Pellin-Broca Prisms, Pechan Prisms etc. prisms


●Product Origin: China
●Shipping Port: Fuzhou China
●Lead Time: 4 working weeks
●Payment: T/T Payment, Western Union

+86-0591-83275656

contact us
Product introduction

Product description

胶合棱镜 图片.jpg

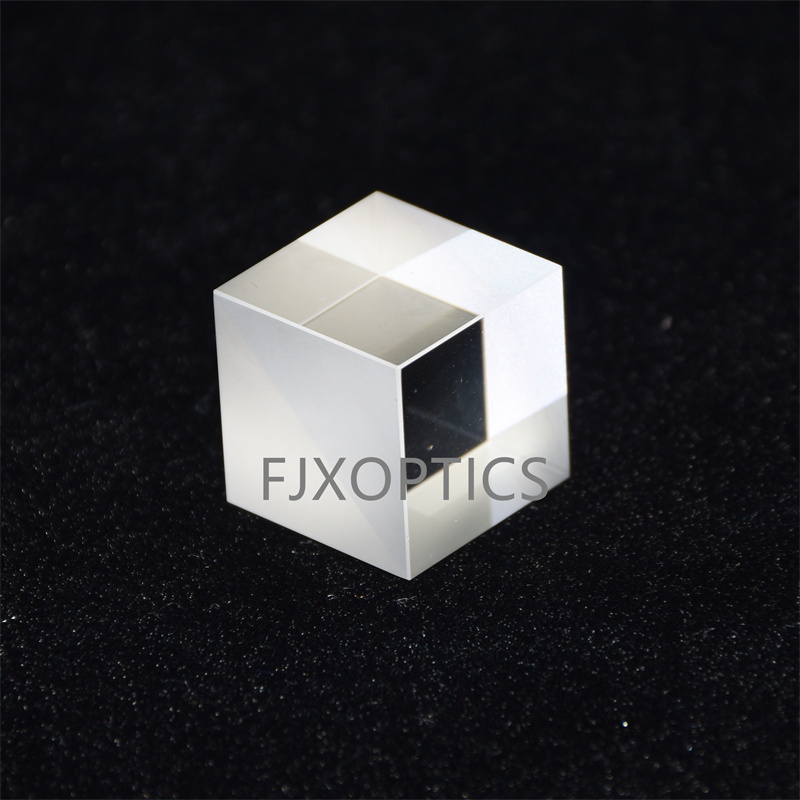

Glued Prisms and Special Customized Prisms.

Glued prisms are glued by different shape prisms.

JX-Optics make customized Special Prisms like Half Penta Prisms, Pellin-Broca Prisms, Pechan Prisms etc. prisms.

Offer the drawing then leave everything for JX.


Specification

Material: N-BK7 ; UV Fused Silica  ;other optical glass

Bevel:  <0.25mm X 45°

Coating:：AR coated, Aluminum Coated and Upon requirement

Demand

Standard

High Precision

Diameter Tolerance:

+0.0/-0.2mm

+0.0/-0.05mm

Surface Quality:

60-40

10-5

Clear Aperture:

>80%

>85%

Flatness (per 25mm@633mm):

λ/4@632.8nm；

λ/8@632.8nm

Angle Tolerance：

+/-3′

+/-10″
