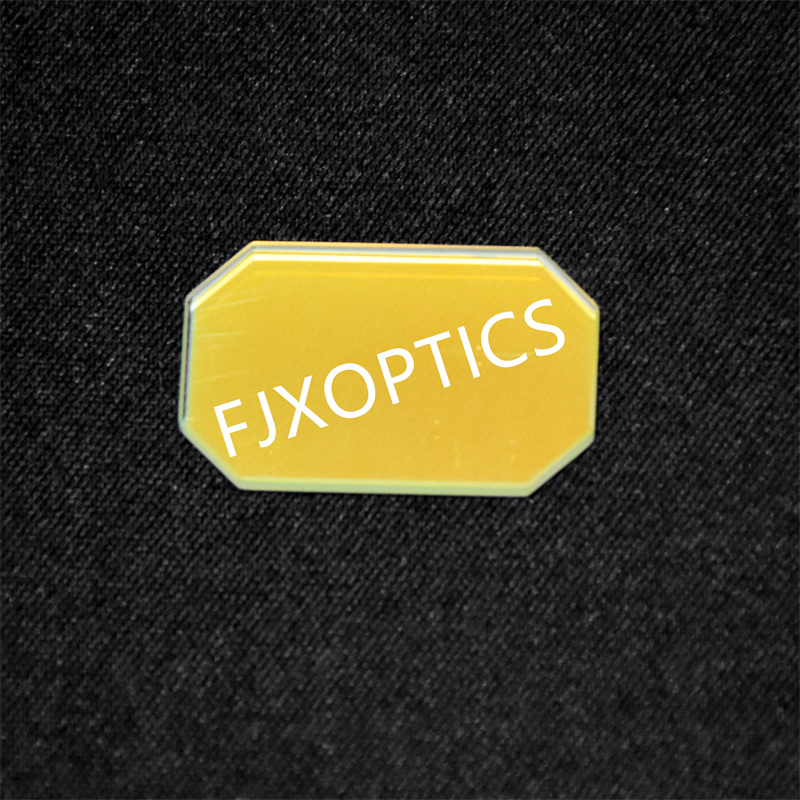

Optical Gold Coated Mirrors
Average Reflectance >94% from 800 nm to 20 µm
Shape could be customized: Round, Square, Elliptical,
Right angle prisms
Material could be customized: Fused silica, Pyrex, N-BK7
●Product Origin: China
●Shipping Port: Fuzhou China
●Lead Time: 4 working weeks
●Payment: T/T Payment, Western Union
+86-0591-83275656
Product description
Mirror is an object with a surface that has good specular reflection. that is, it is smooth enough to form an image.
The most familiar type of mirror is the plane mirror, which has a flat surface. Curved mirror are also used, to produce
magnified or demagnified images or focus light or simply distort the reflected image.
Specification
Material: | N-BK7;UV Fused ilica;other optical glass |
Dimension Tolerance: | ＋0.0，－0.1mm |
Thickness Tolerance: | ±0.1mm |
Surface quality: | 60/40 |
Clear Aperture: | >85% |
Flatness: | λ/4per 25mm@633nm |
Parallelism: | 3' |
Bevel: | <0.25mm X 45° |
Coating: | Protected Gold: Ravg > 94%@650nm-16um |
Typical Sizes:
Round Shape: Φ5.0; Φ10.0 ; Φ12.7; Φ15.0; Φ20.0; Diameter(mm): Φ25.4; Φ30.0; Φ38.1; Φ50.8; Φ76.2
Square Shape: 5.0x5.0 ; 10.0x10.0 ; 15.0x15.0 ; WxH(mm): 20.0x20.0; 25.0x25.0; 50.0x50.0
Thickness(mm): 0.5; 1.0; 1.5; 2.0; 3.0; 4.0; 5.0; 6.0; 8.0; 10.0
