Plano-Convex Cylindrical Lenses

Plano-convex rectangular cylindrical lenses are useful for line imaging or uni-axial magnification in a wide range of applications. These lenses may be combined with other lenses to form complex imaging systems.


●Product Origin: China
●Shipping Port: Fuzhou China
●Lead Time: 4 working weeks
●Payment: T/T Payment, Western Union

+86-0591-83275656

contact us
Product introduction

Product description

Features

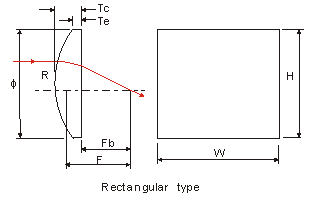

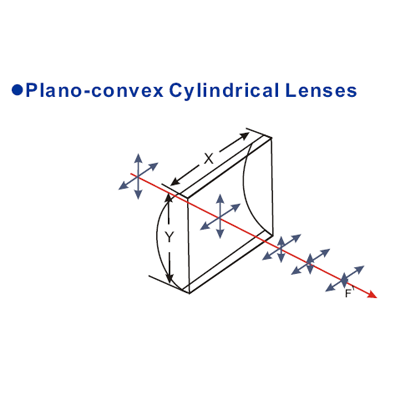

图片111.png平凸柱面透镜 图纸.png


Plaon-concave cylindrical lenses are used to turn a collimated laser source into a line generator.

1. Ideal for Applications Requiring Magnification in One Dimension；

2. Used to Transform a Collimated Beam into a Line；

3. Rectangular and Circular Form Factors Available.



Specification

Material:

 Optical glass or Fused Silica

Design wavelength:

 546.1nm

Diameter  tolerance:

 ±0/-0/.05mm

Focal tolerance:

    ±2%

Surface quality:

    40-20 S/D

Clear aperture:

     90%

Surface flatness:

 N=5 △N=0.5

Centration:

    3 arcmin

Bebel:

    Protective

Coating:

 Upon requirement
