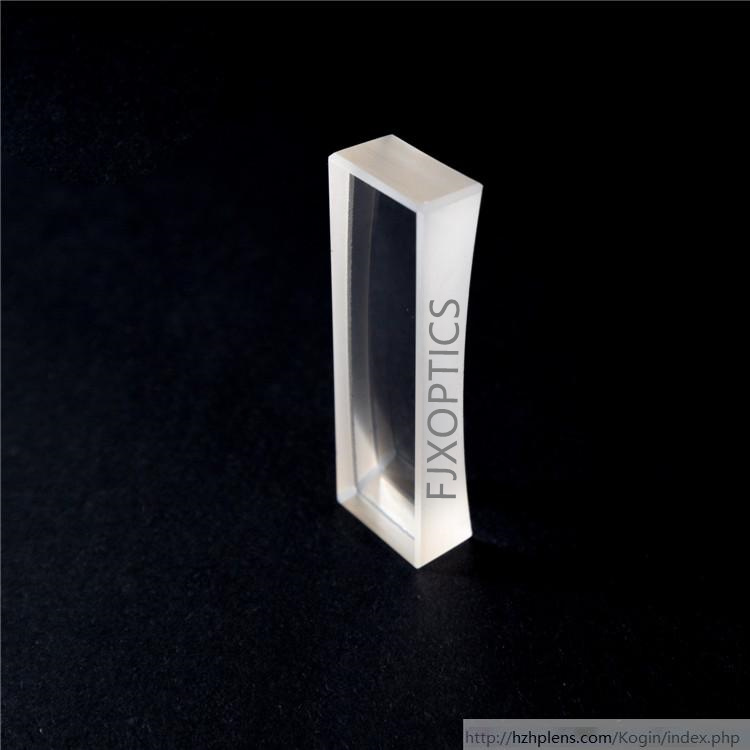

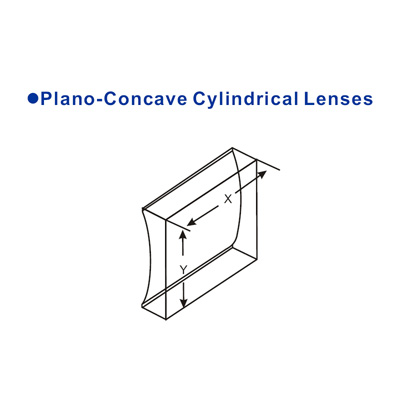

Plano-Concave Cylindrical Lenses
concave cylindrical mirrors provide uniaxial negative imaging for synthetic beam diffusion and its wide range of applications. if concave cylindrical mirrors are required as reflectors, these lenses can be used as mirror blanks.
●Product Origin: China
●Shipping Port: Fuzhou China
●Lead Time: 4 working weeks
●Payment: T/T Payment, Western Union
+86-0591-83275656
Product description
Plano-concave cylindrical lenses are used to turn a collimated laser source into a line generator.
1. Ideal for Applications Requiring Magnification in One Dimension;
2. Used to Transform a Collimated Beam into a Line;

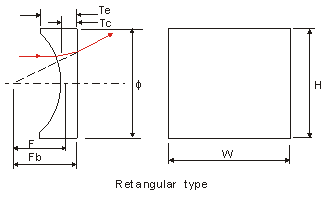

3. Rectangular and Circular Form Factors Available.
Specification
Material: | Optical glass or Fused Silica |
Design wavelength: | 546.1nm |
Diameter tolerance: | 0/-0.05mm |
Focal tolerance： | ±-2% |
Surface quality: | 40-20 S/D |
Clear aperture: | 90% |
Surface flatness: | N=5 △N=0.5 |
Centration: | 3 arcmin |
Bebel: | Protective |
Coating: | Optional |
